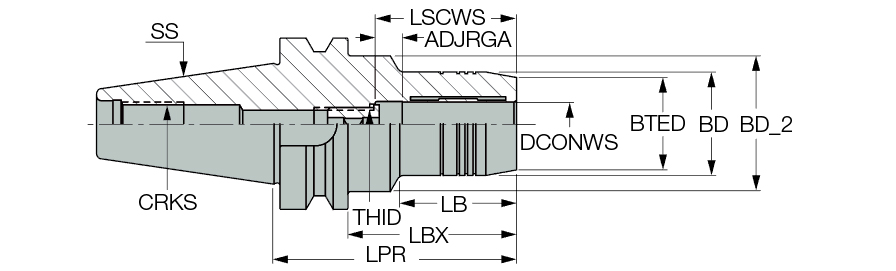

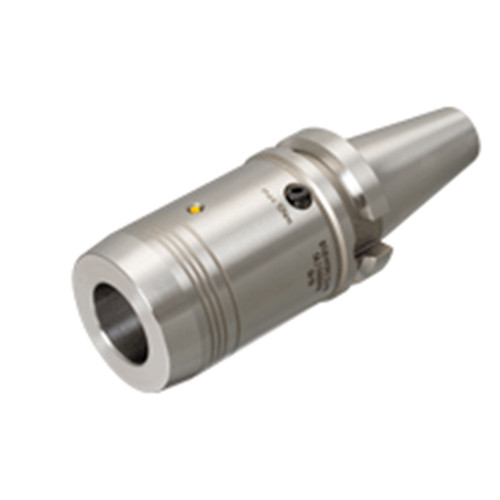

BT30 HYDRO 8X64
Hydraulic Holder ; 8 mm Hole Dia. ; #63 Shank Dia. ; 29 mm Body Length ; 28 mm Body Dia. ; 30 Shank Size ; 4.64″ OAL ; HSK Shank
| Connection Diameter Machine Side (DCONMS) | #63 | Shank Size (SS) | 30 |
| Body Length Maximum (LBX) | 3.38″ | Tool Type | BT |
| Body Length (LB) | 29 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Workpiece Side (DCONWS) | 8 mm | Nose Length | 1.5354″ |
| Body Diameter (BD) | 28 mm | Measurement Type | Metric |
| Protruding Length (LPR) | 64 mm | Body Material | Steel |
| Overall Length (OAL) | 4.64″ | Connection Code Machine Side (CCMS) | BT |
| Shank Type | HSK |
Product Features
| Family Description | Hydraulic chucks with MASBT form AD shanks. for Semi-Finish and finish applications | Country of Origin | Germany |
| Remarks | Chucking forces will be reduced by 25% if reduction sleeves are used. Note: Reduction sleeves are available for 12, 20, 25 and 32 mm bore diameters (order separately). The coolant passages in the B type flange are blocked with screws which can be removed when required. |
Shipping Info
Package Weight
1.517
