HELIR 19-5T12
Grooving Toolholder ; 5-1/2″ OAL ; 0.8″ Shank Height ; 3/4″ Shank Width ; 0.197″ CW Min. ; 0.197″ CW Max. ; 0.47″ Max Depth ; Steel
| Cutting Width Minimum (CWN) | 0.197″ | Head Length (LH) | 1.1″ |
| Cutting Width Maximum (CWX) | 0.197″ | Overall Length (OAL) | 5-1/2″ |
| Cutting Depth Maximum (CDX) | 0.47″ | Coolant Supply Property (CSP) | External |
| Shank Height (H) | 0.8″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | |
| Shank Width (B) | 3/4″ | Body Material | Steel |
| Body Width (WB) | 0.165″ | Tool Type | Face Turning & grooving Tools |
| Functional Width (WF) | 0.67″ | Measurement Type | Inch |
Product Features
| Family Description | HELI-GRIP external holders for turning, grooving & parting | Country of Origin | Israel |

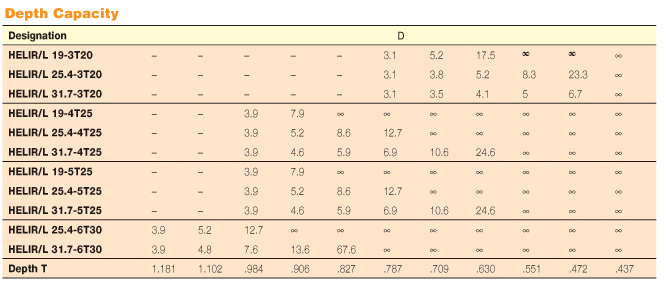

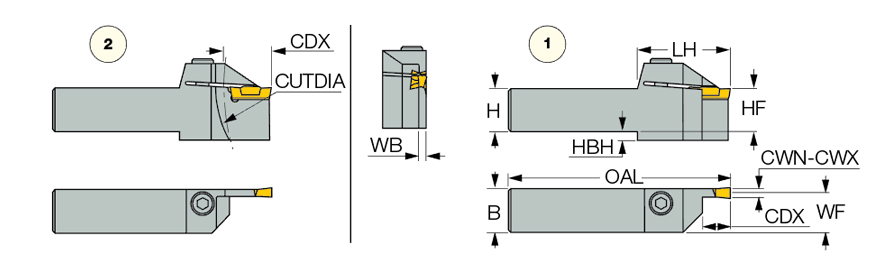

| Remarks | For tool type as shown in Fig.2, CDX for grooving is limited by the part diameter Dmax, for grooving depth capacity, click on More Info To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on More Info |
Shipping Info
Package Weight
0.921
